ALIEN REF 9629/9729 AL02502551U


AG standard Alien REF 9629/9729 Label size is 25x25mm. This antenna design is suit for apparel, large items, baggage tagging, pharmaceutical bottles and other high value consumables etc. RFID projects.

Performance Features

Alien REF 9629
RFID Chip : Alien H3/H4
Protocol : ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2
Operating Frequency : 860~960MHz
Operating Mode : Passive (Battery free)
Memory : 64 bit TID, 96 bit EPC, 512 bit User Memory, 32Bits Access, 32Bits Kill
IC Life : 100,000 Programming cycles, 10 years data retention
Read distance : Average reading distance > 1.5m (Reader and Environment Dependent)
Download Full Datasheet

Mechanical Dimensions

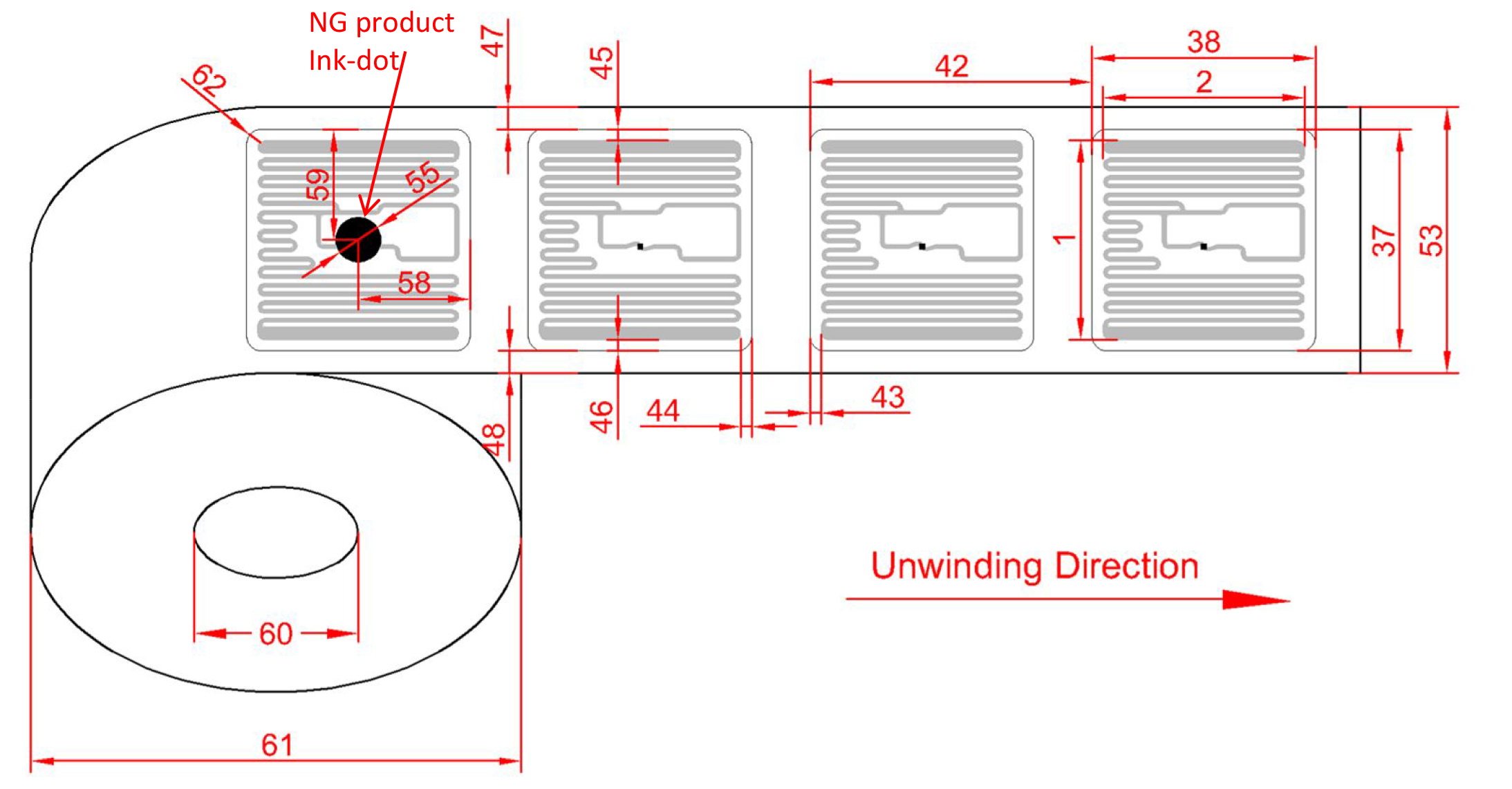

Alien REF 9629 Layout
No. Item Parameter (mm) Tolerance (mm) Parameter (inch)
1 Antenna Width 22.50 mm ± 0.20 mm 0.886 in.
2 Antenna Length 22.50 mm ± 0.20 mm 0.886 in.
37 Label Width 25.00 mm ± 0.20 mm 0.984 in.
38 Label Length 25.00 mm ± 0.50 mm 0.984 in.
42 Label Pitch 31.51 mm ± 1.00 mm 1.240 in.
43 Antenna Edge to Label Edge (Left) 1.25 mm ± 1.25 mm 0.049 in.
44 Antenna Edge to Label Edge (Right) 1.25 mm ± 1.25 mm 0.049 in.
45 Antenna Edge to Label Edge (Top) 1.25 mm ± 1.25 mm 0.049 in.
46 Antenna Edge to Label Edge (Bottom) 1.25 mm ± 1.25 mm 0.049 in.
47 Label Edge to Liner Edge (Top) 5.00 mm ± 1.50 mm 0.197 in.
48 Label Edge to Liner Edge (Bottom) 5.00 mm ± 1.50 mm 0.197 in.
53 Liner Width 35.00 mm ± 1.00 mm 1.378 in.
55 Ink-dot Size 5.00 mm ± 2.00 mm 0.197 in
58 Ink-dot to Product Edge(Right) 12.50 mm ± 2.00 mm 0.492 in
59 Ink-dot to Product Edge(Top) 12.50 mm ± 2.00 mm 0.492 in
60 Core inner diameter 76.20 mm ± 1.00 mm 3.000 in.
61 Reel Outer diameter ≤ 203 mm (Based on the actual shipment quantity)
62 Label Corner Radius 1.50 mm ± 0.20 mm 0.059 in.
Download Full Datasheet

Label Structure

Alien REF 9629
No. Item Material Quality and Thickness
1 Surface Material White art paper 80g/m² ± 10%, 72μm ± 10%
2 Adhesive 1 Acrylic emulsion 19g/m2 ± 5g/m2
3 Antenna Aluminum etching AL + PET (10μm + 50μm)
4 Adhesive 2 Acrylic emulsion 19g/m2 ± 5g/m2
5 Release Paper White glassine paper 61g/㎡ ± 10%, 55μm ± 10%
Download Full Datasheet

Working Environment

Operating Temperature/Humidity : -0~60℃ / 20%~80% RH
Storage Temperature/Humidity : 20~30℃ / 20%~60% RH
Shelf Life : 1 year in anti-static bag at 20~30℃ / 20% ~60% RH
ESD Voltage Immunity : 2 kV (HBM)
Bending Diameter : > 50mm
