Impinj H47 AL050050B2U
AG standard Impinj H47 Label size is 50x50mm. This antenna design is suit for clothing, retail, assets, logistic management etc. RFID projects.
Performance Features
RFID Chip: |
Impinj Monza 4E |
Protocol: |
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
Operating Frequency: |
860~960MHz |
Operating Mode: |
Passive(Battery free) |
Memory: |
48 bit TID, 496 bit EPC, 128 bit User Memory, 32Bits Access, 32Bits Kill |
IC Life: |
100,000 Programming cycles, 10 years data retention |
Read distance: |
Average reading distance > 6m (Reader and Environment Dependent) |
Feature: |
True 3D design with complete orientation insensitivity |
Download Full Datasheet
Mechanical Dimensions
No. |
Item |
Parameter (mm) |
Tolerance (mm) |
Parameter (inch) |
1 |
Antenna Width |
44.00 mm |
± 0.20 mm |
1.732 in |
2 |
Antenna Length |
44.00 mm |
± 0.20 mm |
1.732 in |
37 |
Label Width |
50.00 mm |
± 0.20 mm |
1.969 in |
38 |
Label Length |
50.00 mm |
± 0.50 mm |
1.969 in |
42 |
Label Pitch |
54.33 mm |
± 1.00 mm |
2.139 in |
43 |
Antenna Edge to Label Edge (Left) |
3.00 mm |
± 3.00 mm |
0.118 in |
44 |
Antenna Edge to Label Edge (Right) |
3.00 mm |
± 3.00 mm |
0.118 in |
45 |
Antenna Edge to Label Edge (Top) |
3.00 mm |
± 3.00 mm |
0.118 in |
46 |
Antenna Edge to Label Edge (Bottom) |
3.00 mm |
± 3.00 mm |
0.118 in |
47 |
Label Edge to Liner Edge (Top) |
5.00 mm |
± 1.50 mm |
0.197 in |
48 |
Label Edge to Liner Edge (Bottom) |
5.00 mm |
± 1.50 mm |
0.197 in |
53 |
Liner Width |
60.00 mm |
± 1.00 mm |
2.362 in |
56 |
Ink-dot Width |
2.50 mm |
± 2.00 mm |
0.098 in |
57 |
Ink-dot Length |
3.00 mm |
± 2.00 mm |
0.118 in |
58 |
Ink-dot to Product Edge(Right) |
40.00 mm |
± 2.00 mm |
1.575 in |
59 |
Ink-dot to Product Edge(Top) |
25.00 mm |
± 2.00 mm |
0.984 in |
60 |
Core inner diameter |
76.20 mm |
± 0.50 mm |
3.000 in |
61 |
Reel Outer diameter |
≤ 203mm (Based on the actual shipment quantity) |
62 |
Label Corner Radius |
R=3.00 mm |
± 0.20 mm |
0.118 in |
Download Full Datasheet

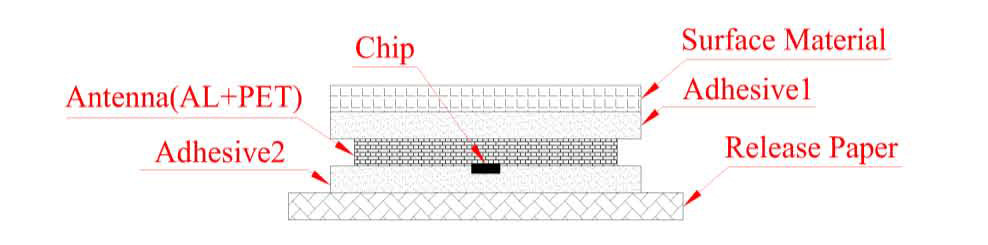

Label Structure
No. |
Item |
Material |
Quality and Thickness |
1 |
Surface Material |
White art paper |
80g/m² ± 10%, 72μm ± 10% |
2 |
Adhesive 1 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
3 |
Antenna |
Aluminum etching |
AL + PET (10μm + 50μm) |
4 |
Adhesive 2 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
5 |
Release Paper |
White glassine paper |
61g/㎡ ± 10%, 55μm ± 10% |
Download Full Datasheet
Working Environment
Operating Temperature/Humidity : |
-0~60℃ / 20%~80% RH |
Storage Temperature/Humidity : |
20~30℃ / 20%~60% RH |
Shelf Life : |
1 year in anti-static bag at 20~30℃ / 20% ~60% RH |
ESD Voltage Immunity : |
2 kV (HBM) |
Bending Diameter : |
> 50mm |
Download Full Datasheet
