NXP Ucode7 F7 Label AL030020D1U
AG standard Ucode7 F7 Label size is 30x20mm. This antenna design is suit for the short distance, small size, alcohol security and assets management etc. RFID projects.
Performance Features
| RFID Chip: |
NXP UCode 7 |
| Protocol: |
ISO/IEC 18000-6C, EPCglobal Class 1 Gen 2 |
| Operating Frequency: |
860~960MHz |
| Operating Mode: |
Passive(Battery free) |
| Memory: |
48 bit TID, 128 bit EPC, 0 bit User Memory, 32Bits Access, 32Bits Kill |
| IC Life: |
100,000 Programming cycles, 10 years data retention |
| Read distance: |
Average reading distance > 2m (Reader and Environment Dependent) |
Download Full Datasheet

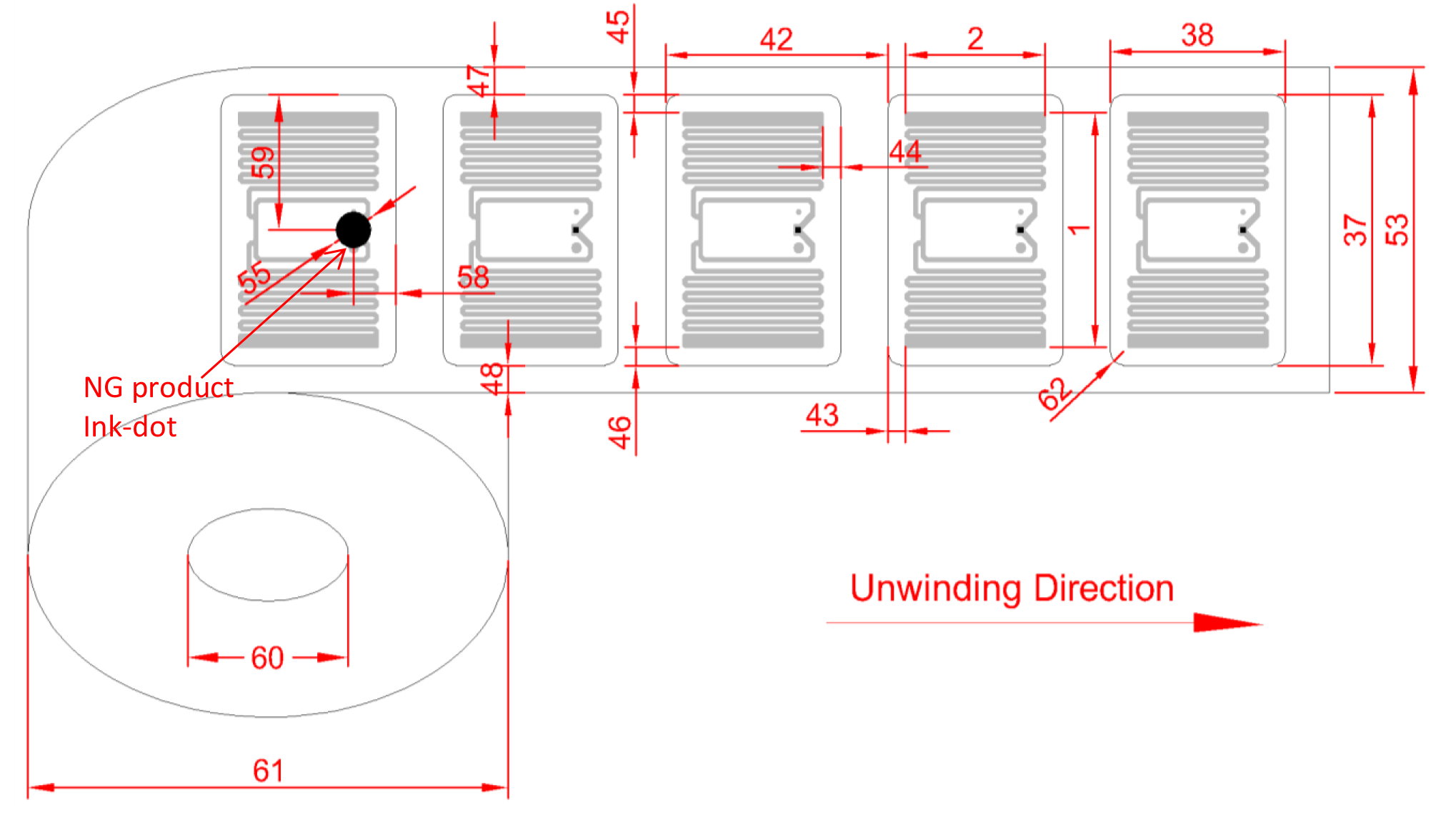

Mechanical Dimensions
| No. |
Item |
Parameter (mm) |
Tolerance (mm) |
Parameter (inch) |
| 1 |
Antenna Width |
26.00 mm |
± 0.20 mm |
1.024 in. |
| 2 |
Antenna Length |
16.00 mm |
± 0.20 mm |
0.630 in. |
| 37 |
Label Width |
30.00 mm |
± 0.20 mm |
1.181 in. |
| 38 |
Label Length |
20.00 mm |
± 0.50 mm |
0.787 in. |
| 42 |
Label Pitch |
25.40 mm |
± 1.00 mm |
1.000 in. |
| 43 |
Antenna Edge to Label Edge (Left) |
2.00 mm |
± 2.00 mm |
0.079 in. |
| 44 |
Antenna Edge to Label Edge (Right) |
2.00 mm |
± 2.00 mm |
0.079 in. |
| 45 |
Antenna Edge to Label Edge (Top) |
2.00 mm |
± 2.00 mm |
0.079 in. |
| 46 |
Antenna Edge to Label Edge (Bottom) |
2.00 mm |
± 2.00 mm |
0.079 in. |
| 47 |
Label Edge to Liner Edge (Top) |
3.00 mm |
± 2.00 mm |
0.118 in. |
| 48 |
Label Edge to Liner Edge (Bottom) |
3.00 mm |
± 2.00 mm |
0.118 in. |
| 53 |
Liner Width |
36.00 mm |
± 1.00 mm |
1.417 in. |
| 55 |
Ink-dot Size |
4.00 mm |
± 2.00 mm |
0.157 in |
| 58 |
Ink-dot to Product Edge(Right) |
4.85 mm |
± 2.00 mm |
0.191 in |
| 59 |
Ink-dot to Product Edge(Top) |
15.00 mm |
± 2.00 mm |
0.591 in |
| 60 |
Core inner diameter |
76.20 mm |
± 1.00 mm |
3.000 in. |
| 61 |
Reel Outer diameter |
(Based on the actual shipment quantity) |
| 62 |
Label Corner Radius |
1.50 mm |
± 0.20 mm |
0.059 in. |
Download Full Datasheet
Label Structure
| No. |
Item |
Material |
Quality and Thickness |
| 1 |
Surface Material |
White art paper |
80g/m² ± 10%, 72μm ± 10% |
| 2 |
Adhesive 1 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
| 3 |
Antenna |
Aluminum etching |
AL + PET (10μm + 50μm) |
| 4 |
Adhesive 2 |
Acrylic emulsion |
19g/m2 ± 5g/m2 |
| 5 |
Release Paper |
White glassine paper |
61g/㎡ ± 10%, 55μm ± 10% |
Download Full Datasheet
Working Environment
| Operating Temperature/Humidity : |
-0～60℃ / 20%～80% RH |
| Storage Temperature/Humidity : |
20～30℃ / 20%～60% RH |
| Shelf Life : |
1 year in anti-static bag at 20～30℃ / 20% ～60% RH |
| ESD Voltage Immunity : |
2 kV (HBM) |
| Bending Diameter : |
＞ 50mm |
